Product model: GJ41X
Nominal diameter: DN25-300
Nominal pressure: PN0.6-1.6MPa
Applicable media: pulp, sewage, slag, coal slag, sediment, etc
Applicable temperature: -30-85 ℃
Main material: stainless steel
Flange execution standard: JB/80-91
Product Overview
Stainless steel pipe clamp valve, also known as stainless steel pipe clamp valve or stainless steel rubber pipe valve, consists of left and right stainless steel valve bodies, rubber pipe sleeves, large and small valve stems, upper and lower gate plates, pull rods, brackets, handwheels, and other parts. Wear resistance, anti-corrosion, frost resistance, and good sealing performance. Simply replace the rubber sleeve and it will be as good as new, with a lifespan of 4-6 times that of ordinary valves. There are various driving methods such as manual, pneumatic, and electric, and non-standard products can also be customized according to customer needs.
Working Principle
When turning the handwheel clockwise, the large and small valve stems simultaneously drive the upper and lower pressure plates to compress the pipe sleeve for closure. Reverse to open, so that the pressure plate moves up and down between the pull rods to complete the valve opening and closing work

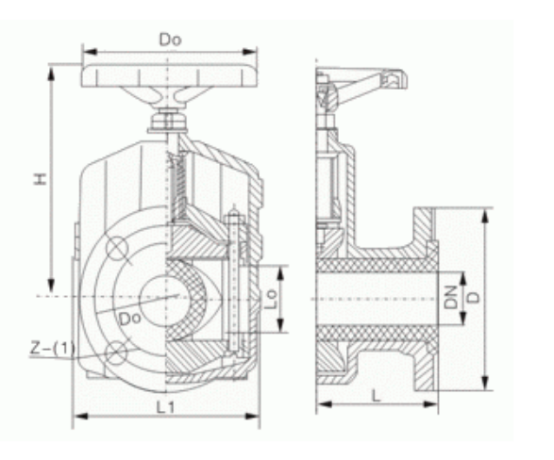

Main overall connection dimensions
|
Nominal Diameter (DN) |
nominal pressure (MPa) |
Working pressure (MPa) |
L |
L1 |
D |
D1 |
Z-Φ |
|
25 |
0.6 |
0.6 |
160 |
124 |
115 |
85 |
4-14 |
|
32 |
165 |
145 |
140 |
100 |
4-18 |
||
|
40 |
190 |
157 |
150 |
110 |
4-18 |
||
|
50 |
210 |
160 |
160 |
125 |
4-18 |
||
|
65 |
250 |
199 |
180 |
145 |
4-18 |
||
|
80 |
300 |
222 |
195 |
160 |
4-18 |
||
|
100 |
350 |
250 |
215 |
180 |
8-18 |
||
|
125 |
430 |
318 |
245 |
210 |
8-18 |
||
|
150 |
500 |
350 |
280 |
240 |
8-23 |
||
|
200 |
0.4 |
0.4 |
650 |
446 |
335 |
295 |
8-23 |
|
250 |
800 |
516 |
395 |
350 |
12-23 |
||
|
300 |
950 |
562 |
445 |
400 |
12-23 |
