Product model: GJ41X
Nominal diameter: DN25-300
Nominal pressure: PN0.6-1.6MPa
Applicable medium: pulp, sewage, slag, cinder, sediment, etc
Applicable temperature: -30-85°C
Main material: aluminum alloy
Flange implementation standard: JB/80-91
Product overview
Aluminum alloy pipe clamp valve, also known as aluminum alloy pipe clamp valve, aluminum alloy hose valve, by about aluminum alloy valve body, rubber tube sleeve, size valve stem, upper and lower gate, pull rod, bracket, handwheel and other parts. Wear resistance, corrosion resistance, frost resistance, sealing performance is good, just replace the rubber sleeve is good as new, life is 4-6 times of the ordinary valve. The driving modes are manual, pneumatic, electric and so on. Non-standard products can also be customized according to customer needs.
Working principle
When turning the hand wheel clockwise, the size of the valve stem simultaneously drives the upper and lower pressure plate, and the compression tube sleeve is closed. The reverse is open, so that the pressure plate in the pull rod up and down reciprocating motion to complete the valve opening and closing work.

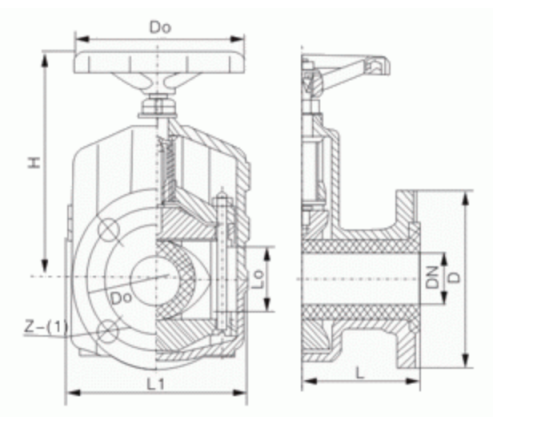

Main contour connection dimensions
|
Nominal diameter (DN) |
Nominal pressure (MPa) |
Working pressure (MPa) |
L |
L1 |
D |
D1 |
Z-Φ |
|
25 |
0.6 |
0.6 |
160 |
124 |
115 |
85 |
4-14 |
|
32 |
165 |
145 |
140 |
100 |
4-18 |
||
|
40 |
190 |
157 |
150 |
110 |
4-18 |
||
|
50 |
210 |
160 |
160 |
125 |
4-18 |
||
|
65 |
250 |
199 |
180 |
145 |
4-18 |
||
|
80 |
300 |
222 |
195 |
160 |
4-18 |
||
|
100 |
350 |
250 |
215 |
180 |
8-18 |
||
|
125 |
430 |
318 |
245 |
210 |
8-18 |
||
|
150 |
500 |
350 |
280 |
240 |
8-23 |
||
|
200 |
0.4 |
0.4 |
650 |
446 |
335 |
295 |
8-23 |
|
250 |
800 |
516 |
395 |
350 |
12-23 |
||
|
300 |
950 |
562 |
445 |
400 |
12-23 |
