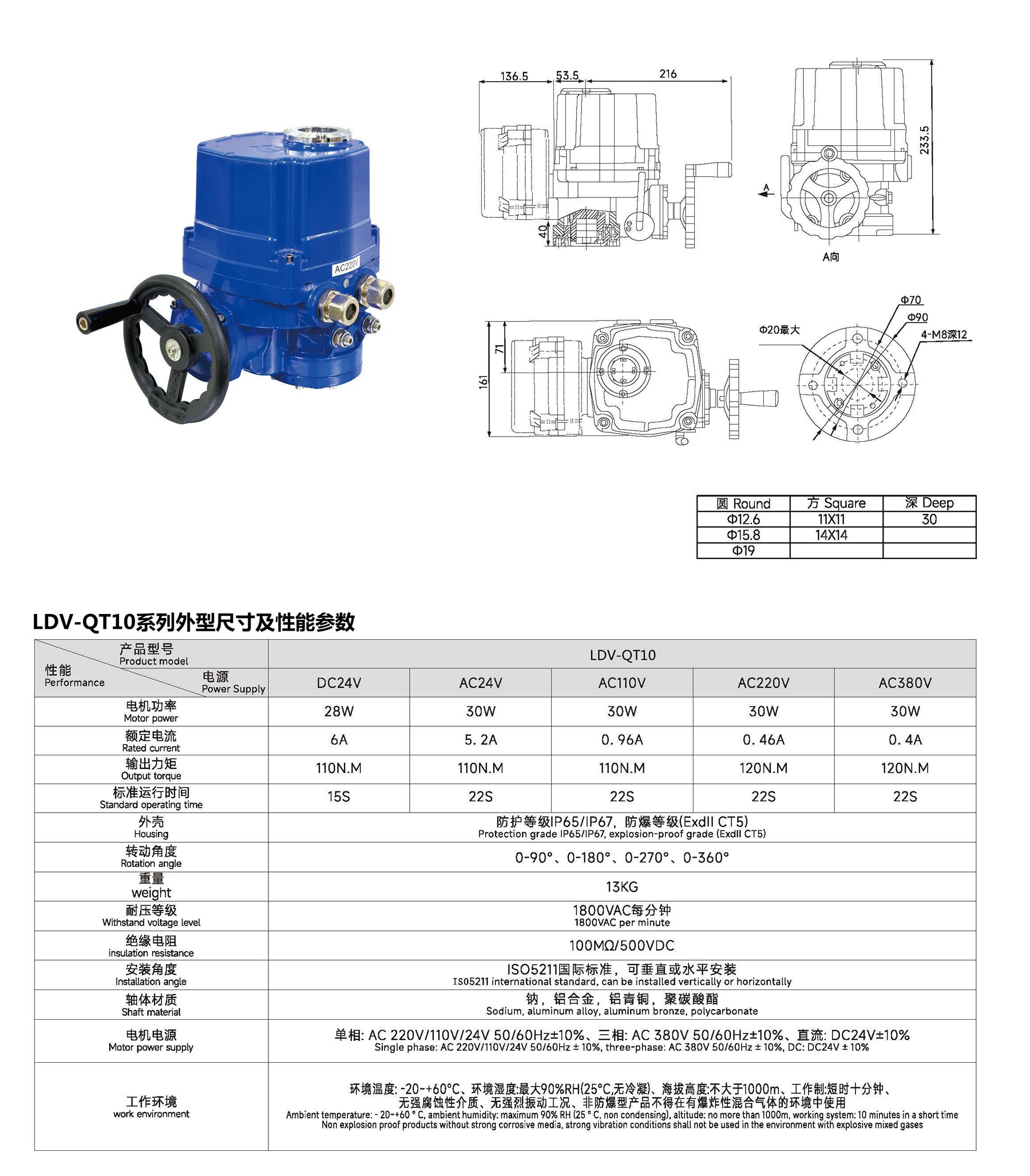

1. The LDQT series electric actuator housing is made of hard aluminum alloy, anodized and coated with polyester powder, with strong corrosion resistance;
2. LDQT series electric actuator motor: fully enclosed squirrel cage motor, small size, high torque, low inertia force, insulation grade F, built-in overheat protection switch, can prevent overheating damage to the motor;
3. The manual structure of the LDQT series electric actuator and the design of the handwheel ensure reliable installation, labor-saving, and small size. When not powered on, manual operation can be performed by pulling the clutch handle. When powered on, the clutch automatically resets. (Note: When the motor is not powered on, the electric actuator will remain permanently in manual mode);
4. LDQT series electric actuator indicator: The indicator is installed on the central axis and can observe the valve position. The mirror surface adopts a convex lens design, which does not accumulate water and is more convenient to observe
